NKFG
UVC LED VRV Air Conditioning Disinfection Module
Product Model: DAV1
Through innovative LED technology, the NKFG commercial UV LED air disinfection module DAV1 generates ultraviolet light in a mercury-free and non-toxic manner, targeting airborne particles for efficient disinfection. DAV1 is characterized by its robustness, shock resistance, energy efficiency, and lightweight design. It features an intuitive panel for clear and easy understanding, along with button-based operation for simplicity. It can be easily customized with various filters for quick installation and removal, providing businesses with a stable and efficient disinfection solution. This results in cost savings in management, reduced maintenance time, and lower maintenance expenses, without the need for significant modifications to existing equipment.
DAV1 is suitable for large venues with high foot traffic such as shopping centers, food courts, office buildings, medical facilities, hotels, and fitness centers. It accommodates various concealed air conditioning sizes and offers customizable designs, ensuring comprehensive disinfection and enhancing environmental protection efforts.
NKFG
NKFG UVC LED Air Disinfection Module for Exhaust Air Vents
Product Model: DAV31M26XXC
Utilizing innovative LED technology, the DAV31M26XXC generates ultraviolet light in a mercury-free and non-toxic manner. The mold dimensions are 685mm (L) × 657mm (W) × 200mm (H), containing 56 UVC LEDs and weighing 10KG. The outer casing is made of SPCC material. It is designed for installation in standard 60cm × 60cm light steel frame ceilings and can be installed in either air supply or return vents. Through UV light irradiation, it effectively disinfects indoor air.
The DAV31M26XXC is suitable for various office spaces, medical facilities, libraries, and residential common areas with light steel frame ceilings. Scientific simulations have shown a disinfection rate of up to 96.9% against the COVID-19 virus with each passage of air.
NKFG

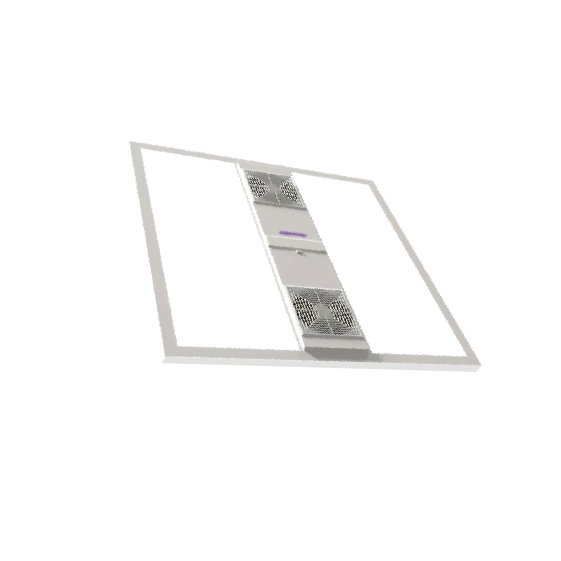

NKFG UVC LED Air Disinfection Panel Light
Product Model: DAM61F26XX
Utilizing innovative LED technology, the DAM61F26XX generates ultraviolet light in a mercury-free and non-toxic manner. The dimensions of the fixture are 600mm (L) x 600mm (W) x 54mm (H), containing 6 UVC LEDs and weighing 3.5kg. The outer casing is made of SPCC/SECC material. This panel light is equipped with a UV LED disinfection module inside for indoor lighting applications. Through the design of air inlet and outlet ducts, it utilizes UV light to effectively disinfect indoor air.
The DAM61F26XX is suitable for various office spaces, medical facilities, hotels, and other public areas with light steel frame ceilings. With each passage of air, it achieves a disinfection rate of up to 99.9% against the COVID-19 virus. In real-world installations in office spaces, it is recommended to install one unit per 4 square meters. Each unit processes air at a rate of 60L/min. In testing, it achieved a disinfection rate of 89.2% against golden staphylococcus, which translates to a COVID-19 disinfection rate of 99.98%.
